UnfyOpenSCADLib
LibFile: unfy_brackets.scad
UnfyOpenSCADLib Copyright Leif Burrow 2026 kc8rwr@unfy.us unforgettability.net
This file is part of UnfyOpenSCADLib.
unfy_brackets contains a collection of modules for generating brackets.
File Contents
Module: unf_simple_bracket
Usage:
- unf_simple_bracket(<args>);
Description:
Creates a simple bracket.
Arguments:
| By Position | What it does |
|---|---|
top_bolt_size |
bolt size for top side of bracket (M4) |
top_slot_length |
setting a length here allows the top mounting hole to be a slot, allowing adjustment rather than a plain round hole (0) |
top_bolt_position |
vertical location of the top mounting hole, distance from the bend (11) |
bottom_bolt_size |
bolt size for bottom side of bracket (#6) |
bottom_slot_length |
setting a length here allows the bottom mounting hole to be a slot, allowing adjustment rather than a plain round hole (0) |
bottom_bolt_position |
horizontal location of the bottom mounting hole, distance from the bend (11) |
body_color |
color of the bracket or false for default (false) |
wall |
width of both sides of the bracket (4) |

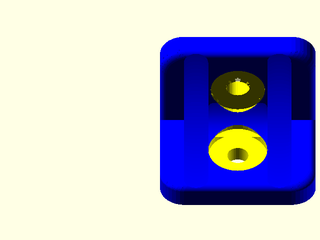

Figure 1.1.1: defaults

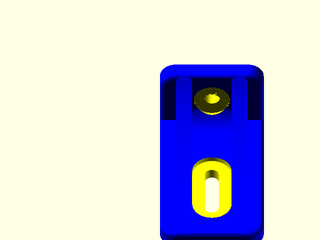

Figure 1.1.2: bottom_bolt_position=22, bottom_slot_length=15
